NEO6MV2 GPS Module with Flight Controller

NEO6MV2 GPS Module with Flight Controller

(5 customer reviews)



Verified by – Kiwano

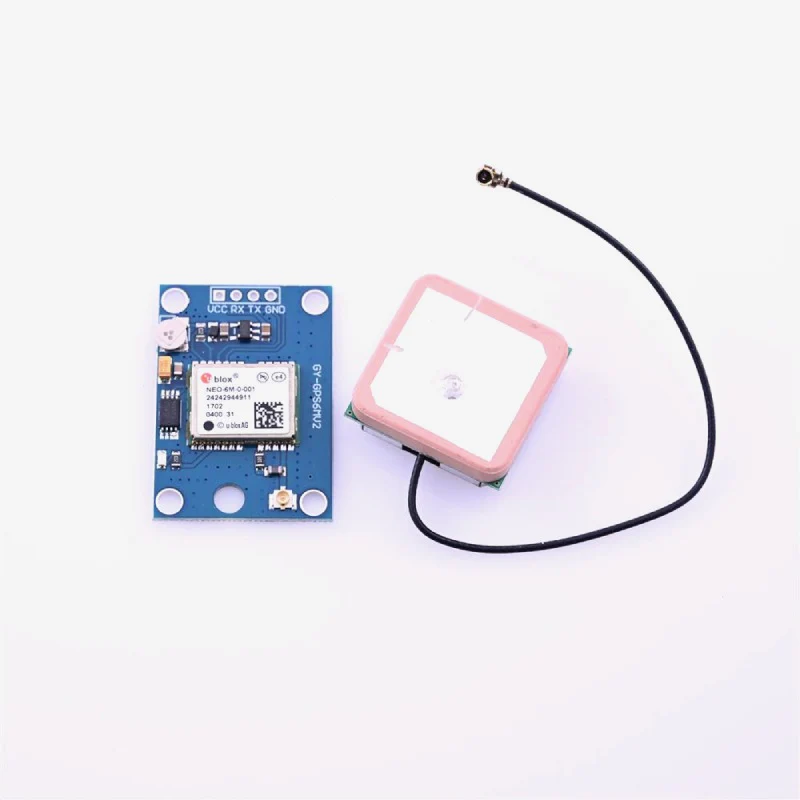

The NEO-6MV2 is a stand-alone GPS (Global Positioning System) module featuring a high-performance 50 channel U-Blox 6 positioning engine. The NEO6MV2 GPS module checks for location on Earth and provides the Latitude and Longitude of the position it is in. This is a low-cost module with a detachable antenna, which also comes with a logic level converter and a voltage regulator, which makes it compatible with both 5V and 3.3V powered boards like Arduino Uno, Mega, Pro Mini, etc. It can be used in the Navigation Systems of Smartphones and Tablets, Drones, in location-based services, etc.



Specifications

  • Robust & high accuracy
  • Board size: 23mm*40mm
  • Compatible with 3.3V-5V interface
  • Compatible with all versions of Arduino
  • EEPROM to save configuration settings
  • Separated 18X18mm GPS antenna
  • Support SBAS (WAAS, EGNOS, MSAS, GAGAN)
  • Maximum navigation update rate: 5Hz
  • Default baud rate: 9600bps
  • EEPROM with battery backup
  • Sensitivity:  -160dBm
  • Supply voltage: 3.6V
  • Operating temperature range: -40ºC TO 85°C



Product Description

NEO6MV2 GPS Module with Flight Controller Pinout

To power the device, you can either connect your 5V pin or 3.3V pin to VCC and connect GND. As it communicates at 9600 bps via UART TTL logic, you need to connect TX and RX pins to respective pins on your controller and get the GPS coordinates of your position.



Package Contents

1×NEO-6MV2 GPS Module

1× Detachable Antenna
